Product application:

● 5G communication base station machine room                                    ● Main control cabinet of 5G communication base station room

● Surge protection in telecommunication room                                        ● Discrete unit of communication relay base station

● Power supply system of base station machine room                            ● 5G transceiver antenna electrical control system

● Power supply control system of relay machine room                            ● Computer center machine room control system

Product features:

★ The product adopts first-line brand devices

★ Rail mounted infinite cascade products

★ Large current inductance decoupling technology is adopted

★ Series type large load current IL up to 26A

★ Apply fast response large current TVs device

★ The design is based on the global market access certification specification

◆ The whole series of products are customized by OEM / ODM, and can cooperate with customers to open new products. for customized products,

     please consult the business department.

◆ This product is suitable for lightning stroke and surge protection of cabinet in communication machine room. It is installed in track type and can be

     cascaded infinitely to facilitate construction operation.

General technical parameters of the product:

◆ Protection grade: IP20

◆ Response time: <5ns

◆ Leakage current: <1uA

◆ Operating temperature: - 40 - + 85 ℃

◆ Storage temperature: - 40 - + 125 ℃

Product Parameters：

★This product supports unlimited cascade, and the product model cannot be fully recorded. Please contact us if you have special customization requirements.

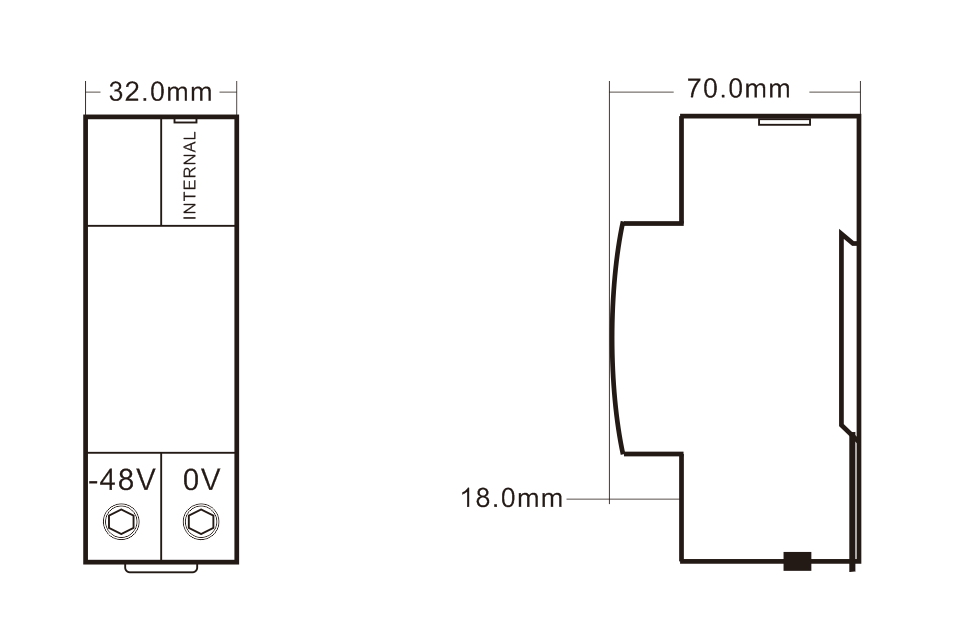

Product Dimension Program:
